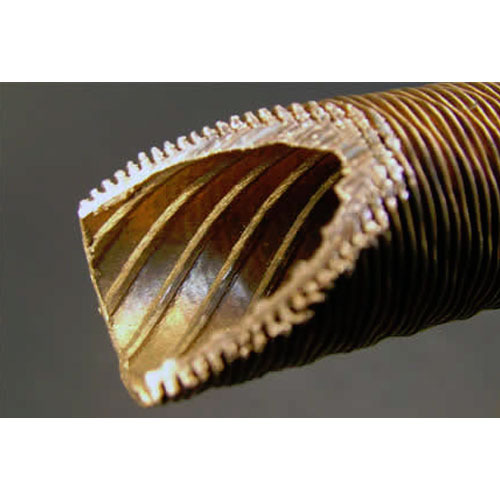

Condenser Low Fin Tube

Code of Conduct:

These tubes follow the same codes depending upon the choice of material they are processed out of which maximum are subjected as per SB-359.

Most of the condenser tubes are built by copper tubes as their properties suit the best for this application.

Procurement:

It follows the same process in procurement for finning which are duly Hydro Tested and Eddy Current Tested as per material specification and code, from reputed plain tube manufacturers.

Application:

  • Condenser tubes are specifically designed to efficiently condense process fluid of the outside of the tube.
  • This application is widespread in heat exchangers, from being part of a condenser and evaporator refrigeration cycle in a chiller, to condensing steam in surface condensers, and everything in between.
  • Copper Condenser Tubes are extensively used in sugar refineries for condensers and evaporators.
  • Deoxidized copper is the standard material for transferring heat from steam to water or air because of their excellent resistance to corrosion by fresh water and their high thermal co-efficiency.
  • HVAC industry is the place where these tubes are best suited with.

Technical parameters:

 Material of Construction

 : Copper - SB111 UNS NO. C - 12200

  Code

 : As per SB - 359

  Diameter

 : 15.88mm, 19.05mm, 25.40mm

  Wall thickness

 : 1.00mm up to 2.45mm.

 No. of Fins per Inch

  : 26 , 28 , 30, 36, 40 FPI

  • Condenser Low Fin Tubes are available with exact lengths, plain portions at both ends , intermediate spaces ( plain portions for baffle sheet support ) as per customer requirement.
  • Condenser Low Fin Tubes are dispatched after they clear Pneumatic Pressure test / Hydro pressure test after finning.
  • Condenser low Fin Tubes will be supplied in "As Finned Temper".
  • Condenser Low Fin Tubes will be supplied duly Stress Relieved on in-house Electric Conveyor Belt Furnace, as per SB-359, on customer specific requirement.
  • We provide MTC along with all the required documents.
