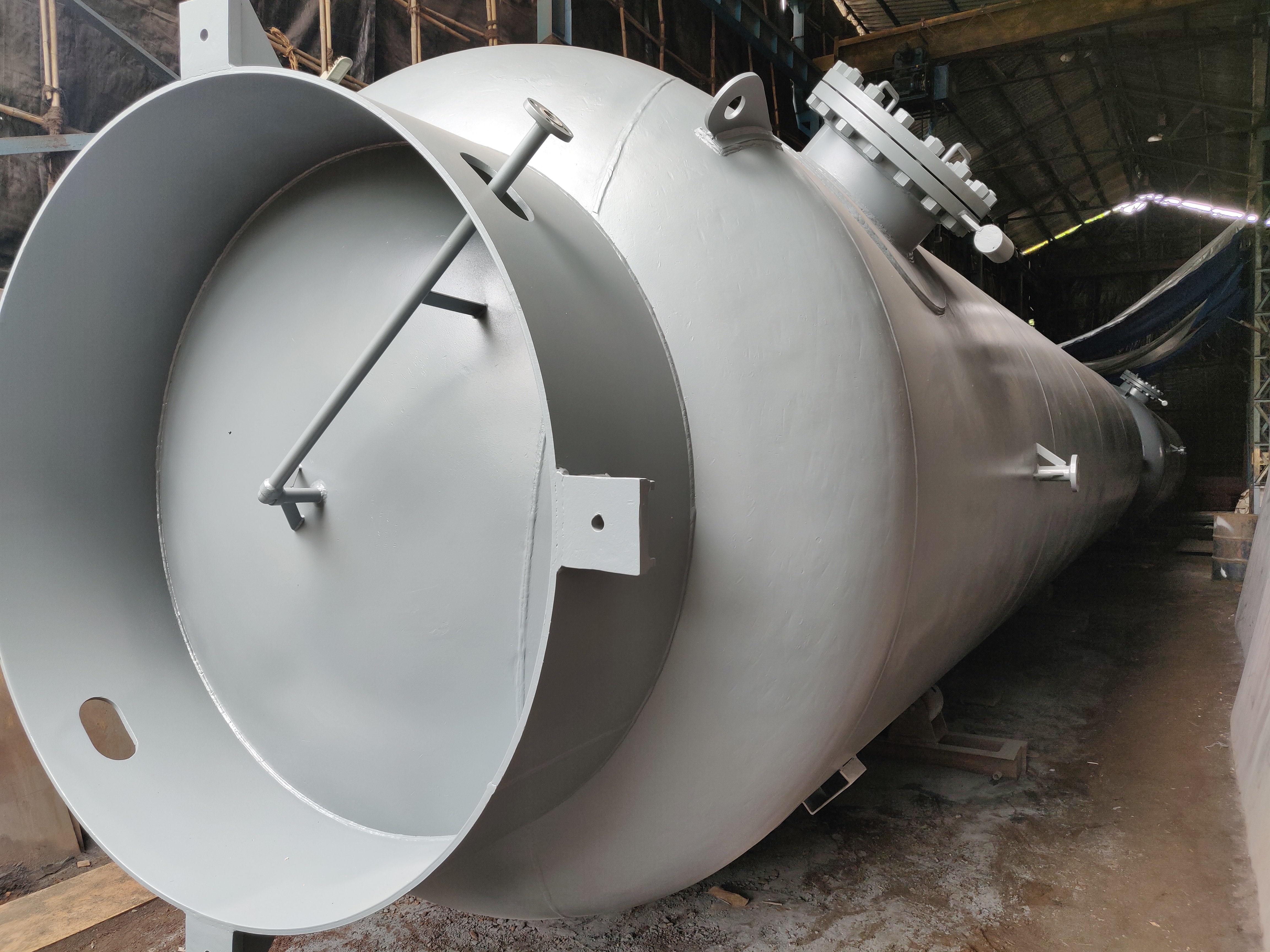

A pressure vessel is a container designed to hold gases or liquids at a pressure substantially different from the ambient pressure.
Design involves parameters such as maximum safe operating pressure and temperature, safety factor, corrosion allowance and minimum design temperature (for brittle fracture). Construction is tested using nondestructive testing, such as ultrasonic testing, radiography, and pressure tests. Hydrostatic tests use water, but pneumatic tests use air or another gas. Hydrostatic testing is preferred, because it is a safer method, as much less energy is released if a fracture occurs during the test (water does not rapidly increase its volume when rapid depressurization occurs, unlike gases like air, which fail explosively).
In most countries, vessels over a certain size and pressure must be built to a formal code. In the United States that code is the ASME Boiler and Pressure Vessel Code (BPVC). In Europe the code is the Pressure Equipment Directive. Information on this page is mostly valid in ASME only. These vessels also require an authorized inspector to sign off on every new vessel constructed and each vessel has a nameplate with pertinent information about the vessel, such as maximum allowable working pressure, maximum temperature, minimum design metal temperature, what company manufactured it, the date, its registration number (through the National Board), and ASME's official stamp for pressure vessels (U-stamp). The nameplate makes the vessel traceable and officially an ASME Code vessel
Applications Pressure Vessels
Storage tanks’
Recompression chambers
Nuclear plants
Compressors
Food processing plants
Storage in Gas plants
Petrochemical Plants
Pharmaceuticals
Beverage industry
Steam plants
Iron and Steel Industry
Power Generation industry
Material of Construction
Our pressure vessels are normally manufactured in Stainless Steel AISI 304/306 , Carbon Steel SA516 Gr.70 depending upon the application. Other materials like SS304L , SS316L , copper , titanium and other special materials can also be offered.
Design
At peer fin tubes and engineering everything begins with designing the Pressure vessel according to various standards including ASME sec VIII Div I, IS codes for our clients. Our design team makes it their mission to curate the designing to its epitome where the main focus is kept in making the vessel withstand the desired pressure under all the conditions.
At the same time make it cost effective and flexible design for the clients
Software
When it comes to check the design and its applicability we make use of HTRI the best in class to check the design with the help of simulation and optimize the design furthermore.
The mechanical calculations of Heat exchanger are verified with PV elite the most trust worthy software to give the detailed reports on the mechanical properties of the equipment.
After successfully running the design error free in both the software’s with the equipment performing at its penultimate state the design then goes to workshop for fabrication.
